Every ServiceNow architect eventually learns this truth: your instance is only as good as your MID Servers. The MID servers are the invisible workhorses that connect your ServiceNow cloud instance to the real world i.e. your networks, servers, applications, and devices.
Whether you are running Discovery, Service Mapping, Orchestration, Event Management, or CMDB updates, it’s the MID Server doing the heavy lifting. Yet, because it works quietly behind the scenes, it’s often neglected until something breaks.
In this article lets unpack the architecture, deployment strategy, tuning, and monitoring of the MID Server in a way that connects both the technical and operational dots.
What the MID Server Actually Does
A MID Server (Management, Instrumentation, and Discovery Server) is a lightweight Java application that you install inside your corporate network. Its only job is to securely execute commands and transfer data between your ServiceNow instance and internal systems without ever requiring inbound access.

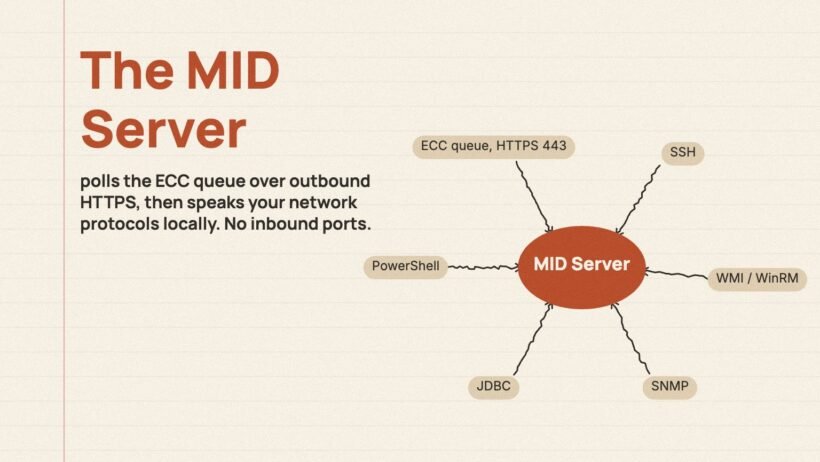

Think of it as a translator that speaks both ServiceNow and your enterprise network protocols using SSH, WMI, SNMP, WinRM, JDBC, PowerShell and carries those messages over a secure HTTPS channel.
The beauty lies in its architecture.
Communication Flow
- ServiceNow instance creates a job (for example, a Discovery schedule).
- That job generates ECC (External Communication Channel) messages / instructions waiting to be executed.
- The MID Server polls the ECC queue using outbound HTTPS on port 443.
- It retrieves those instructions, runs them locally using the appropriate protocol, and sends results back as inbound ECC messages.
Its asynchronous, fault-tolerant, and secure by design with no inbound ports, no open tunnels.
Architecture and Deployment Considerations
Installation
Installing a MID Server is straightforward, but small details make a big difference later. Always install on a local drive and use a clean path (no spaces):
C:\ServiceNow\MID_Server_AgentSpaces in paths like C:\Program Files\ can break Java path handling or scheduled scripts.
System Requirements
| Component | Minimum | Recommended |
|---|---|---|
| OS | Windows Server 2016+ / RHEL 6+ | Windows Server 2019+ / RHEL 6+, CentOS 7+, Ubuntu 14+ |
| CPU | 4 cores | 8 cores |
| Memory | 8 GB | 16 GB |
| Disk | 40 GB | 80 GB |
| Network | HTTPS 443 outbound | Add SSH, SNMP, WMI, WinRM as needed |
Important: For Windows Discovery, the MID must run on Windows (so it can access WMI, WinRM, and PowerShell natively).
Environment Separation
Each instance (DEV, TEST, PROD) should have its own dedicated MID Servers. Never share a MID across environments not even temporarily. It can result in ECC queue mismatches and untraceable data contamination.
In production, a minimum of two MID Servers per capability is essential for redundancy. If one goes down or is busy with heavy Discovery, the other picks up seamlessly.
Clustering and Network Placement
When you have multiple MIDs performing the same function (say, Discovery), they can be grouped into a cluster.
A cluster isn’t a separate ServiceNow object, it’s simply a logical grouping via the Cluster Name field.
MIDs in the same cluster automatically share workload and act as failover for each other.
Example:
| MID Name | Cluster | Function | Location |
|---|---|---|---|
| MID_DISC_DC1_A | DISC_DC1 | Discovery | Data Center 1 |
| MID_DISC_DC1_B | DISC_DC1 | Discovery | Data Center 1 |
| MID_EVENT_NA_A | EVENT_NA | Event Mgmt | North America |
When Discovery runs, the platform intelligently chooses an available MID from the cluster.
Best practice: Deploy MIDs close to the target network they’ll scan. A MID sitting across WAN links or VPN tunnels will cause latency, dropped packets, and failed probes. For global companies, this means one pair per data center or per large subnet.
Tuning the MID Server
Now that the MID is running, performance tuning is where you make it enterprise-ready.
Thread Configuration
Each MID Server processes jobs using multiple threads parallel execution lanes that determine how many tasks can run simultaneously.
The default is 25 threads, which is fine for a lab, but not for production.
Discovery on 10,000 devices with 25 threads will take ages.
To tune this, edit the configuration file:
#: <MID Server Directory>\agent\conf\config.xml
<parameter name="max_threads" value="125"/>Each thread represents roughly one probe per minute. So, increasing threads improves throughput but it also increases CPU and memory consumption.
For large networks, 75–125 threads per MID is common, but increase gradually and monitor the results.
JVM Memory Allocation
The MID Server runs on Java, so it relies on JVM (Java Virtual Machine) heap memory. The default heap size is 1024 MB (1 GB) which becomes insufficient as soon as you increase threads or discovery scope.
To adjust heap size:
#: <MID Server Directory>\agent\conf\wrapper-override.conf
wrapper.java.maxmemory=2048This gives the MID 2 GB of heap memory. For extremely large-scale Discovery or multiple capabilities, you can go up to 4096 MB.
Rule of thumb:
As you increase threads, increase JVM memory proportionally. If you double threads, double the heap.
Otherwise, you will eventually hit an OutOfMemoryError and your MID will stall mid-scan.
Real-World Performance Example
Suppose you want to discover 2,500 devices in a 6-hour window.
Each device averages 7 probes (network, classification, identification, etc.).
That’s 2,500 x 7 = 17,500 probes.
A single MID with 25 threads processes ~25 probes per minute → 17,500 / 25 = 700 minutes (11.5 hours).
To hit your 6-hour target, you could:
- Increase to 50 threads (doubles throughput), or
- Add a second MID in the same cluster (halves the load per MID).
Scaling horizontally (adding MIDs) is almost always better than overloading one.
Monitoring and Health Management
A tuned MID is great but an unmonitored one will always surprise you when it’s too late. ServiceNow provides a built-in MID Server Dashboard underMID Server > Dashboard.
This view shows:
- Average CPU and memory utilization
- MID Server uptime and status
- Queue processing rates
To go deeper, use related lists on each MID record:
ECC Agent Scalar Metric→ tracks CPU utilization (min/max/avg every 10 minutes)ECC Agent Memory Metric→ tracks JVM heap usage over time
A healthy MID should consistently operate below these thresholds:
| Metric | Recommended Range |
|---|---|
| CPU Utilization | < 80% |
| Memory Usage | < 75% of allocated heap |
| ECC Queue Delay | < 2 minutes |
If memory usage approaches the configured max, increase wrapper.java.maxmemory.
If CPU saturation is high even at moderate thread counts, distribute jobs across another MID or lower thread count slightly.
Security and Access Design
A MID Server often runs scripts, SSH commands, and remote probes inside your environment, so security must be deliberate. Always run the MID as a dedicated service account with least-privilege credentials.
Never use personal or admin accounts.
ServiceNow Credentials (for SSH, WMI, SNMP, etc.) should be managed using the platform’s Credential Affinity or Vault Integration. Passwords never need to be stored locally on the MID host.
From a network security standpoint:
- Outbound only over port 443 to your instance
- Outbound ports open to target systems (SSH 22, WinRM 5985/5986, SNMP 161, etc.)
- No inbound access required.
And one crucial thing exclude the MID directory from antivirus real-time scanning. MID logs and JAR files change rapidly, and constant AV scanning can cause severe performance degradation.
Ongoing Maintenance and Optimization
A MID Server isn’t “set it and forget it.” As your environment scales, Discovery schedules grow, or new integrations are added, you’ll need to periodically re-evaluate capacity.
Typical signals that it’s time to tune:
- ECC queue shows increasing backlog
- Discovery schedules take longer to complete
- CPU utilization spikes during runs
- MID status flips between Up and Down frequently
When that happens:
- Review MID logs in
agent/logs/for timeouts or memory exceptions. - Check ECC metrics in the instance.
- Validate that your thread and heap settings match your current load.
- Add another MID if scaling vertically no longer helps.
A mature MID environment usually has multiple layers of MIDs, segmented by region and purpose. Discovery MIDs for infrastructure, Event MIDs for telemetry, Orchestration MIDs for workflow execution. This separation not only balances load but also simplifies troubleshooting.
Conclusion
Behind every reliable Discovery or Orchestration process sits a well-tuned, well-monitored MID Server.
It’s not glamorous, but it’s what keeps ServiceNow connected to reality.
The keys to success are simple:
- Deploy multiple MIDs per environment.
- Cluster them by capability and location based on the requirement.
- Tune threads and memory gradually.
- Monitor continuously CPU, heap, and ECC queue.
- Secure them properly and isolate them from noisy neighbors.
Once you get this layer right, your Discovery runs complete faster, Orchestration flows become smoother, and Event Management becomes more resilient.
The MID Server does not just “connect” your instance its what gives ServiceNow its reach, its intelligence, and its power to automate at scale.
